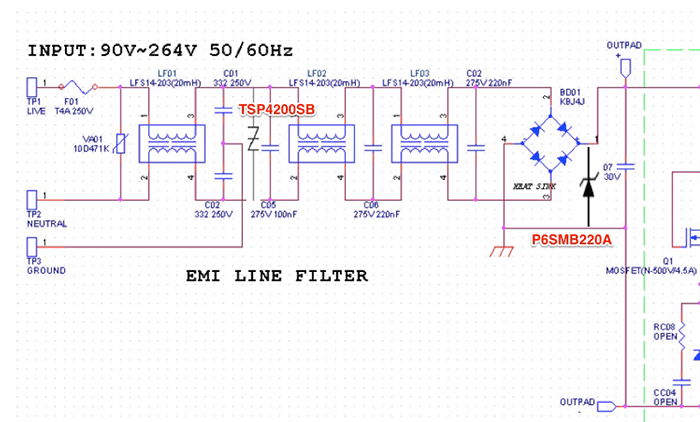

TSP4200SB Application Note
| Electrical Characteristics (25 c) | ||||||||
| VRM | IRM | VBO | IBO | VT | IT | Co | IH | |
| Min. | Max. | Max. | Max. | Max. | Min. | |||
| TSP0080SB | V | uA | V | mA | V | A | pF | mA |
| 6 | 2 | 15 | 800 | 2 | 1 | 80 | 50 | |
| TSP4200SB | 390 | 5 | 500 | 800 | 2.2 | 1 | 25 | 150 |
| Electrical Characteristics (25 c) | ||||||||
| VRM | IRM | VBO | IBO | VT | IT | Co | IH | |
| Min. | Max. | Max. | Max. | Max. | Min. | |||
| TSP0080SB | V | uA | V | mA | V | A | pF | mA |
| 6 | 2 | 15 | 800 | 2 | 1 | 80 | 50 | |
| TSP4200SB | 390 | 5 | 500 | 800 | 2.2 | 1 | 25 | 150 |
