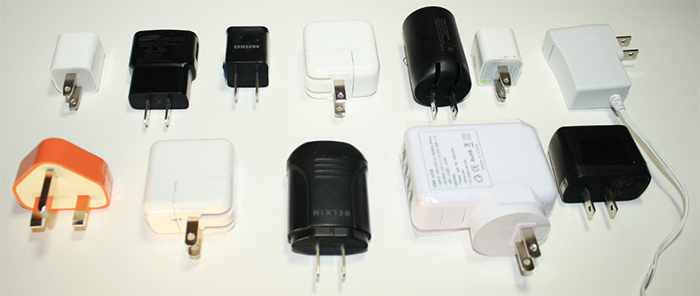

Platform Solution for charger/Adapter

General/ Fast Diode

Schottky Diode

MOSFET

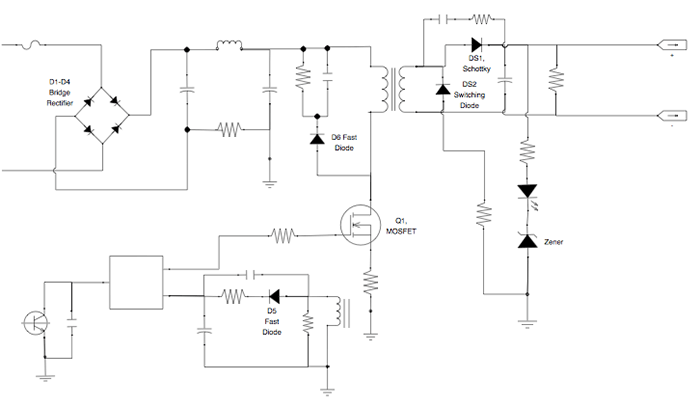

Function Product Spec Package P/N Ref.
Primary rectifier Bridge 1A/800V MBS MB08S D1-D4
General Rectifier 1A/1000V SOD-123FL GS1010FL
Snubber Fast Rectifier 1A/1000V SOD-123FL RS1010F D6
Fast Rectifier 1.2A/1000V SOD-123FL RS1010FS
IC VCC Supply Fast Rectifier 1A/1000V SOD-123FL RS1010F D5
Compensate Diode Switching 0.2A/200V SOD-323 BAV20WS DS2
Main Switching N MOSFET 6A/700V TO-251 MSU6N70 Q1
Secondary Rectifier Low VF Schottky 5A/40V SMB SS54B DS1
Low VF Schottky 10A/45V TO-277 SS10PU45
Low VF Schottky 15A/45V TO-277 SS10PU45
Low VF Schottky 10A/50V TO-277 SS10PU50
Low VF Schottky 15A/50V TO-277 SS10PU50
Low VF Schottky 20A/60V TO-277 SS20PU60
